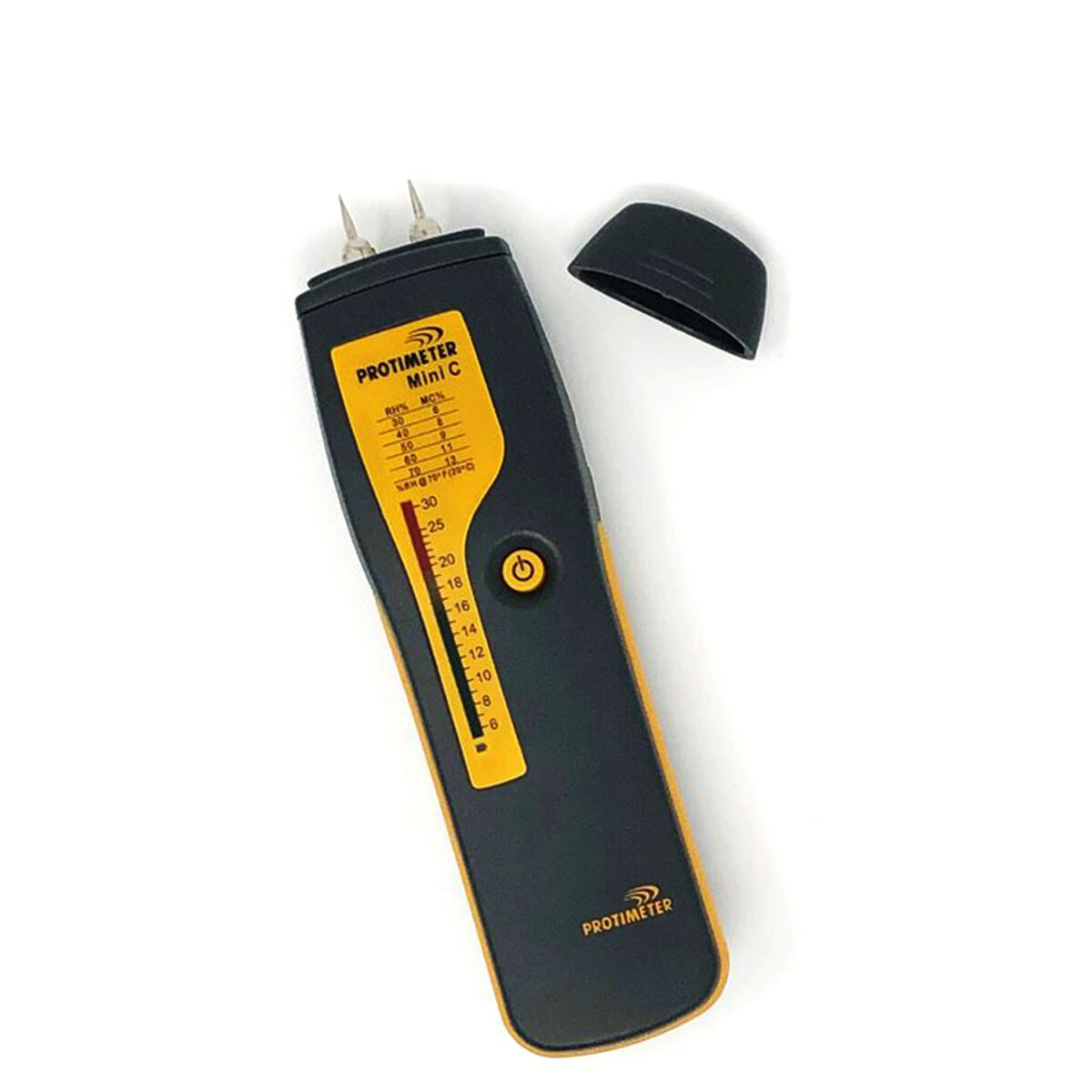

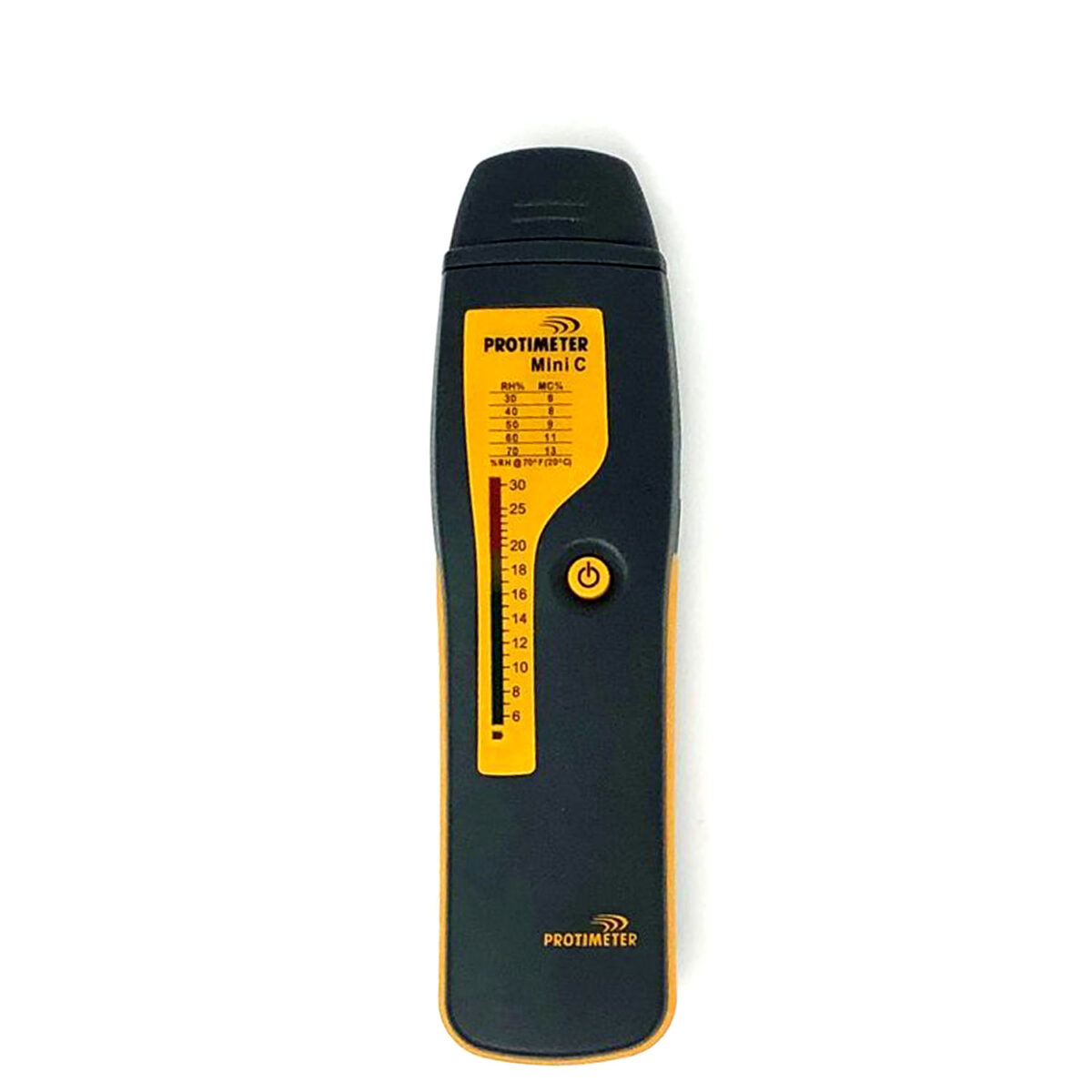

Digital pin type moisture meter The Protimeter Mini C is ideal for assessing the moisture condition in buildings. A color-coded scale enables the user to assess the moisture level of wood and dry wall at a glance. The numerical values represent the actual percent moisture content of wood (% MC) and the wood moisture equivalent (WME) of concrete, dry wall and other materials. The Mini can be used to determine if the fabrics of a building are in a dry, borderline or damp condition. It is important that hardwood finish materials are in moisture equilibrium with the local indoor environment. The Mini C has this information printed right on the label. For example, a 70°F (20°C) environment with an average relative humidity of 60% and would require a moisture content of approximately 11%. The Mini C can also be used to make quick reference readings on concrete sub floors. These readings are surface, but allow the operator to quickly determine the moisture risk. It is a requirement that concrete be tested with an ASTM-approved test such as the F2170 in situ humidity probe test. A range of optional extras are available, including pin extension probes and a hammer electrode for getting measurements up to 1 1/2 inch (38mm) below the surface. Supplied with: PROTIMETER Mini C Two replacement pin electrodes Pin protection cap Calibration check device Velcro pouch Calibration chart for 150 wood species Operators Instructions 9V Battery 2 Year Warranty Measure Mode Pin-Type Ideal for measuring brickwork, plaster during home inspections. Reference Mode Deep wall probes provide readings of masonry at depth or in cavities. Hammer Electrodes WME readings are design for all wood products. Key Features Helps prevent warping and cracking Avoids costly call backs Quick and easy to use Wide range of wood species calibrations Durable design Plug-in optional extras Auto shut off Specifications Applications Range: 6% to 30% numerical label Home Inspectors Display: 60 LEDs – green (dry), yellow (at risk) & red (wet) Flooring Contractors Weight 150g Termite pest control Dimensions 180 x 28 x 49 mm Wood product manufacturers & traders Batteries 1 x 9V Cleaning & floor restoration professionals Wood workers Digital Mini C Applications The Protimeter Mini C is a low cost, highly durable moisture meter designed specifically for the wood floor installation industry. The Mini C is a pin type moisture meter that displays instant moisture content results on its 6 to 30% LED scale. The 3 colour coded LED scale gives the operator instant information regarding “Dry”, “At Risk” or “Wet” conditions. Protimeter Mini C Documentation View and download this product’s brochure, datasheet, and manual in a PDF format Protimeter Mini C – Data Sheet
