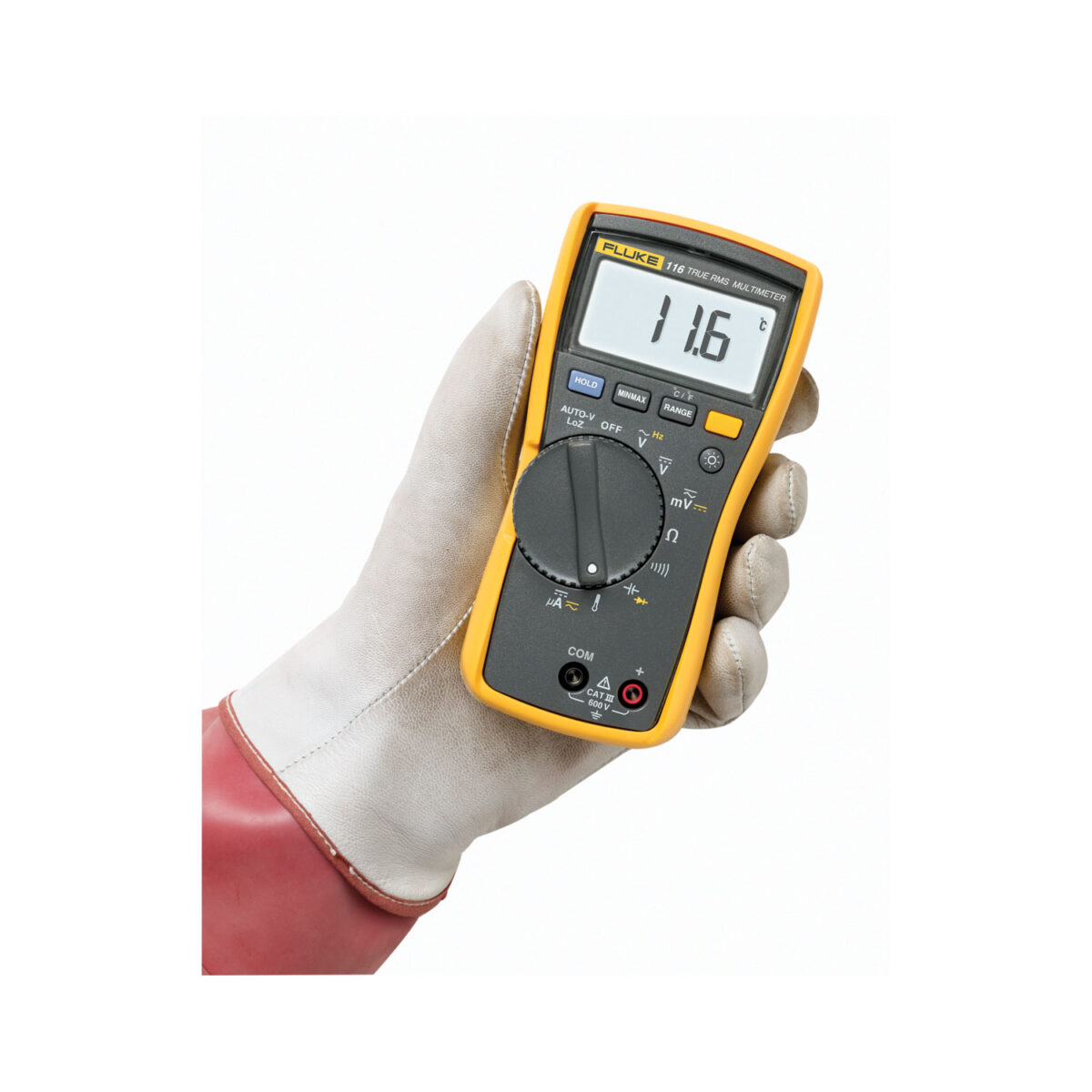

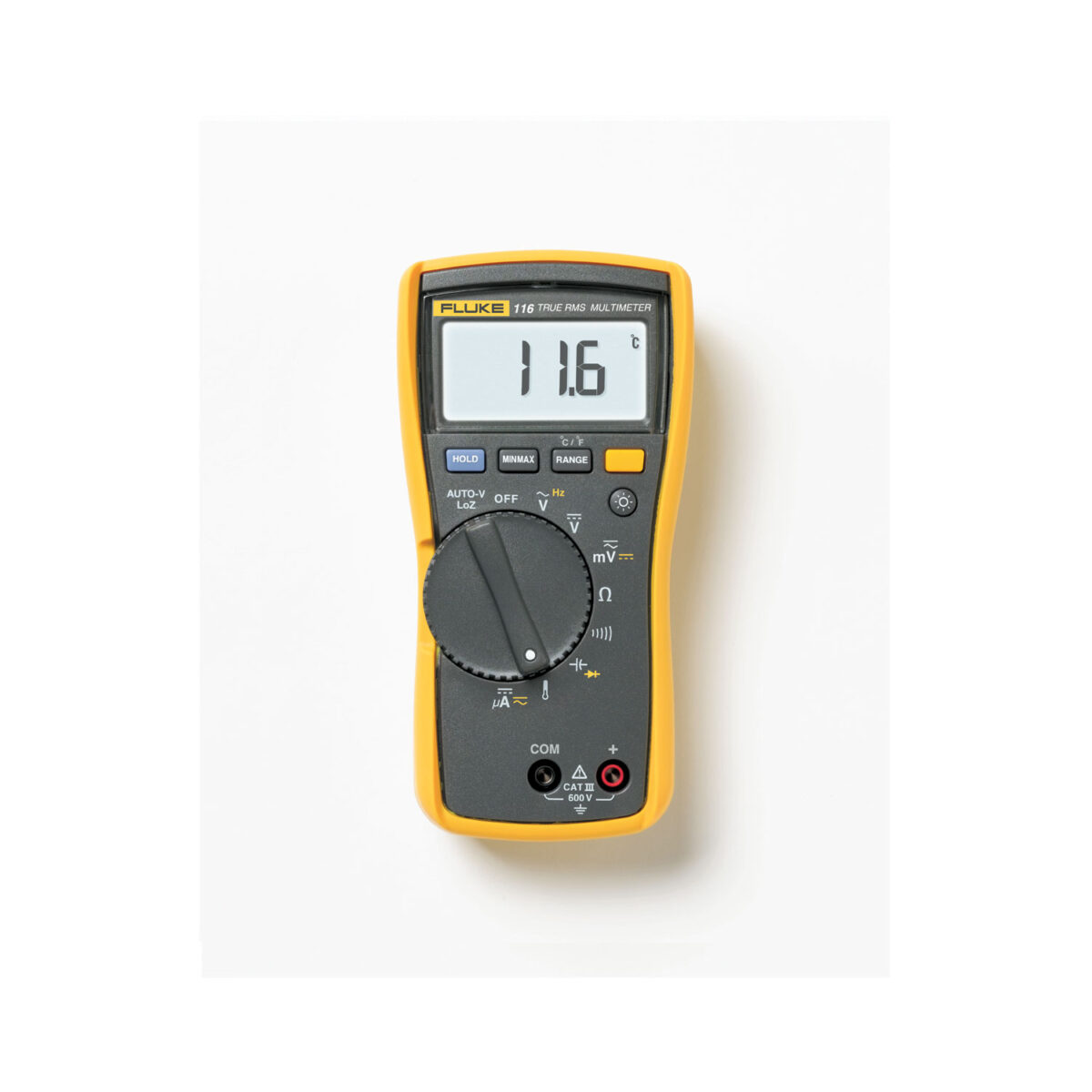

Fluke 116 Digital Multimeter designed specifically for HVAC professionals The Fluke 116 Digital Multimeter provides the features you need to quickly troubleshoot HVAC equipment The Fluke 116 HVAC multimeter was specifically designed for HVAC professionals. It has everything you need to quickly troubleshoot problems with HVAC equipment and flame sensors, including a built-in thermometer to measure temperatures up to 400°C (752°F) and microamps to test flame sensors. The Fluke 116 digital multimeter also measures resistance, continuity, frequency, and capacitance; and the large white LED backlight makes it easy to see results even in poorly lit areas. The Fluke 110 Series has five true-rms digital multimeters, each for specific users. The compact instruments offer convenient one-handed operation and a backlit display with large, easy-to-read digits. Supplied with: Fluke 115 Multimeter TL75 Test Leads Rubber Boot 9V battery User manual 2 Year Warranty Fits into optional ToolPak™ magnetic hanger for hands-free operation Key Features Built-in thermometer: -40 to 400°C Microamps mode – specifically made for testing flame sensors DC millivolts measurements: 600mV AC/DC voltage measurements: 600V Continuity test & Diode test Resistance measurements: 40MΩ Capacitance test: 1000μF Frequency measurements: 50Hz 6000 count digital LCD display with integrated backlight 33 segment analogue bargraph on display Battery life: 400 hours (typical use, without backlight) True RMS – maintains accuracy when testing on irregular AC circuits LoZ mode MIN/MAX/AVG mode with elapsed time Compact, ergonomic design CAT III 600V Benefits Applications Includes built-in thermometer to measure temperature from -40°C to 400°C (-40°F to 752°F) HVAC technicians Provides microamps to test flame sensors Building maintenance Features low input impedance to helps prevent false readings due to ghost voltage Presents a large white LED backlight for working in poorly lit areas Measures resistance, continuity, frequency, and capacitance Provides Min/Max/Average to record signal fluctuations Comes with a holster with probe holders for easy storage Features a compact ergonomic design for one-handed operation 116 HVAC Multimeter Documentation View and download this product’s brochure, datasheet, and manual in a PDF format Fluke 116 HVAC Multimeter – Data Sheet Fluke 116 HVAC Multimeter – User Manual Fluke 114 115 116 117 Digital Multimeters – Calibration Information Calibration Information Supplement
