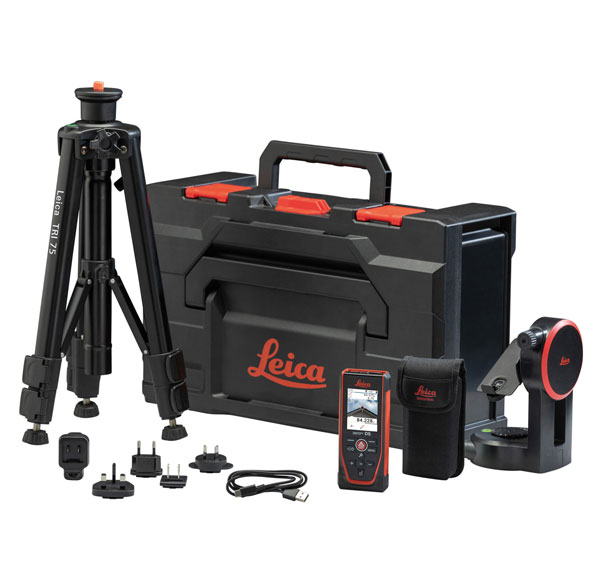

Outdoor laser distance measuring made easy With the digital on screen Pointfinder the Leica DISTO D5 R makes measuring outside, even in bright sunshine and at very long distances, easy. Both the target and the measurement results can be seen very clearly on the large IPS display(iPhone quality). Avoid moving the device for accuracy when measuring using the new Gesture measure feature, move hand across laser beam and measurement is triggered…. How cool is that! So many features to help with all manner of measuring applications, Smart Horizontal Mode, height tracking, profile or angle measurements. This means that any measurement situation on the construction site can be solved quickly and efficiently. For vertical height measuring between 2 points mount the laser into the FTA360 Cradle Adapter and screw onto the tripod. The height tracking mode uses a digital angle tilt sensor to calculate the vertical height through rotation. The first measurement zeros the angle tilt sensor and then calculates height when you tilt the laser in the cradle upwards. Using the camera align the cross hair on the screen as a target to the desired height and a vertical measurement is calculated from the first measurement you took. Measured data can then be Blue-toothed to the DISTO Plan app or individual templates, e.g. in Excel, email or any application to support an efficient and error-free digital workflow. KEY FEATURES Outdoor laser | Digital pointfinder Range: 200m | Accuracy: ± 1 mm Bluetooth® Smart, FREE App Leica DISTO™ sketch Colour display with Digital Pointfinder 4x zoom Multi-functional, IP54 (dust & splash water protected) Trigger measurements with a gesture – for max accuracy Indirect height measurement, 360° tilt sensor Area & volume function | Addition/subtraction Indirect Height Measurement | 360° Tilt Sensor Smart Horizontal Mode | Smart Room Measurement RELATED PRODUCTS Leica DISTO X6 R P2P Pack Use the DISTO X6 R P2P Pack for highly accurate interior & exterior Point-to-Point measurements. In addition to the X6 R the P2P Pack INCLUDES: DST 360-X Adapter | TRI 120 Tripod | GZM 3 Target Plate | Hard Case Quick Start with QR code link to online manual, Calibration Certificate Silver Leica DISTO X6 R P2P Pack Leica DISTO D5 R - FEATURES Measure with a gesture No need to touch the DISTO: Carefully place the laser dot or crosshairs of the Pointfinder Camera on target & simply wave a hand in front of the device to briefly interrupt the beam. When the DISTO senses this pulse, it triggers the measurement. Multi-functional endpiece The Multi-functional endpiece folds out from the back of the DISTO and automatically sets the measuring point to either the rear of the DISTO or the tip of the extended endpiece. Bluetooth Keyboard Mode In this mode, your device sees the DISTO as a Bluetooth® keyboard. Press send to deliver measured values to the cursor in any program. Leica DISTO Plan App Document Measurements Digitally FIND OUT MORE >> Leica DISTO D5 R Video Tutorials Getting to know your DISTO D5 R DISTO D5 R – How to measure long distances How to use the Bluetooth keyboard mode on Leica DISTO D5 R or X6 R with Android & Excel Leica DISTO: How to Measure Outdoors How to use the digital pointfinder Indoors or generally in favourable lighting conditions, the red laser dot is very clearly visible so that the object can be easily targeted. In bright outdoor areas, however, or even in bright sunlight, the laser dot is no longer visible. The laser distance meter can still measure without any problems. To aim, however, you now need the Pointfinder – a camera that shows you the target exactly in the crosshairs on the display. Key Features Indoor /outdoor laser | Digital pointfinder Range: 200m | Accuracy: ± 1 mm Bright and clear 2.8” IPS touchscreen with scratch-proof lens 360° tilt sensor, Measuring units: m, ft, in Color display with Pointfinder 4x zoom Trigger measurements with a gesture – for max accuracy Indirect height measurement, 360° tilt sensor DIST key on the side for even more intuitive measurements Multi-functional, IP54 (dust- and splash water protected) Trigger measurements with gestures Memory for 300 reports Li-Ion rechargeable battery USB-C charging and download of data Keyboard simulating data-transfer via Bluetooth® Bluetooth® 5.0 Technology for error-free data transfer Works with DISTO Plan App (iOS and Android) and DISTO transfer (Windows) Compatible with DST 360-X adapter to enable P2P measurements Specifications Accuracy with favourable conditions * 1.0 mm / 1/16″ *** Accuracy with unfavourable conditions ** 2.0 mm / 1/8″ *** Range with favourable conditions * 0.05 – 200 m / 0.07 – 660 ft *** Range with unfavourable conditions ** 0.05 – 120 m / 0.07 – 400 ft *** Smallest unit displayed 0.1 mm / 1/32 in X-Range Power Technology yes Laser Class 2 635 nm, <1 mW Digital Pointfinder with 4-fold zoom yes Tilt measuring range **** 360° Tilt measuring tolerance ± 0.2° ø laser point | at distances 6 / 30 / 60 mm | 10 / 50 / 100 m Protection class IP54 (dust- and splash water protected) Auto. laser switch off after 90 s Auto. power switch off after 180 s Bluetooth® Smart Bluetooth® v5.0 Range of Bluetooth® up to 10 m Battery durability (Li-Ion 2 000 mAh) up to 5’000 measurements up to 10 hours operation time Dimension (H x D x W) 144 x 60 x 24 mm | 5.7 x 2.4 x 0.9 in Weight (with batteries) 180 g / 6.35 oz Temperature range storage | operation -25 to 70 °C / -13 to 158 °F | -10 to 50 °C / 14 to 122 °F Leica DISTO D5 R Documentation View and download this product’s brochure, datasheet, and manual in a PDF format Leica DISTO & Leica Lino Family Brochure Leica DISTO D5 R – Data Sheet Leica DISTO D5 R – Quick Start Guide Leica DISTO D5 R – User Manual
